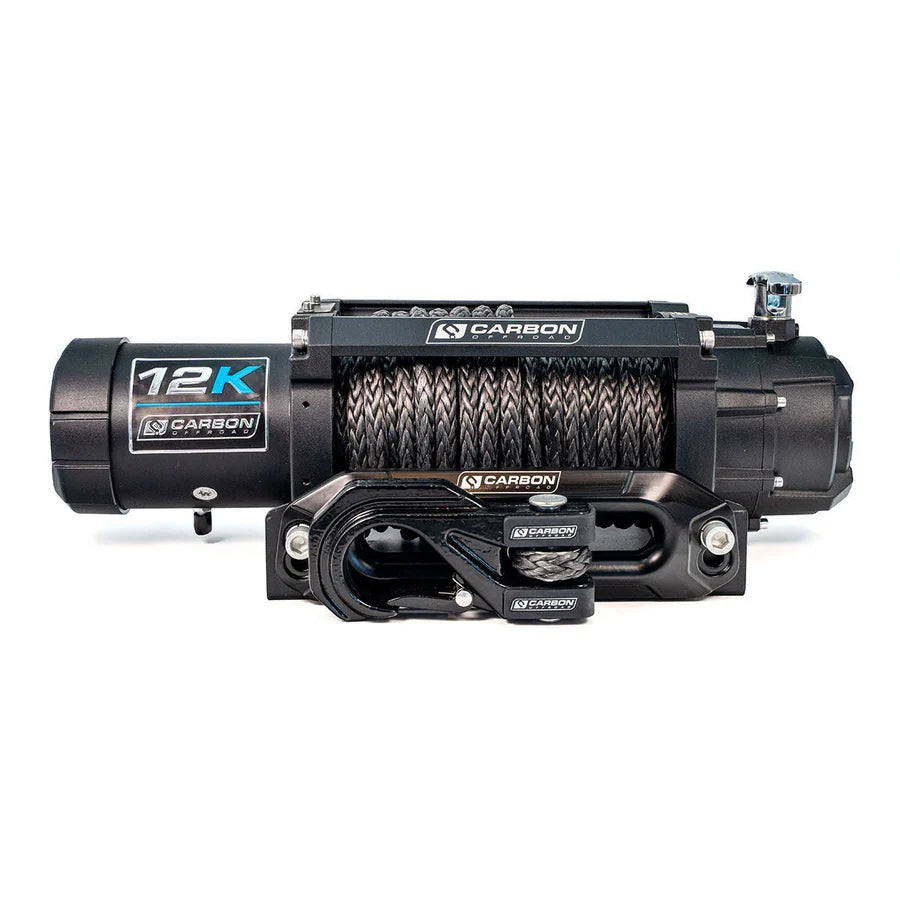

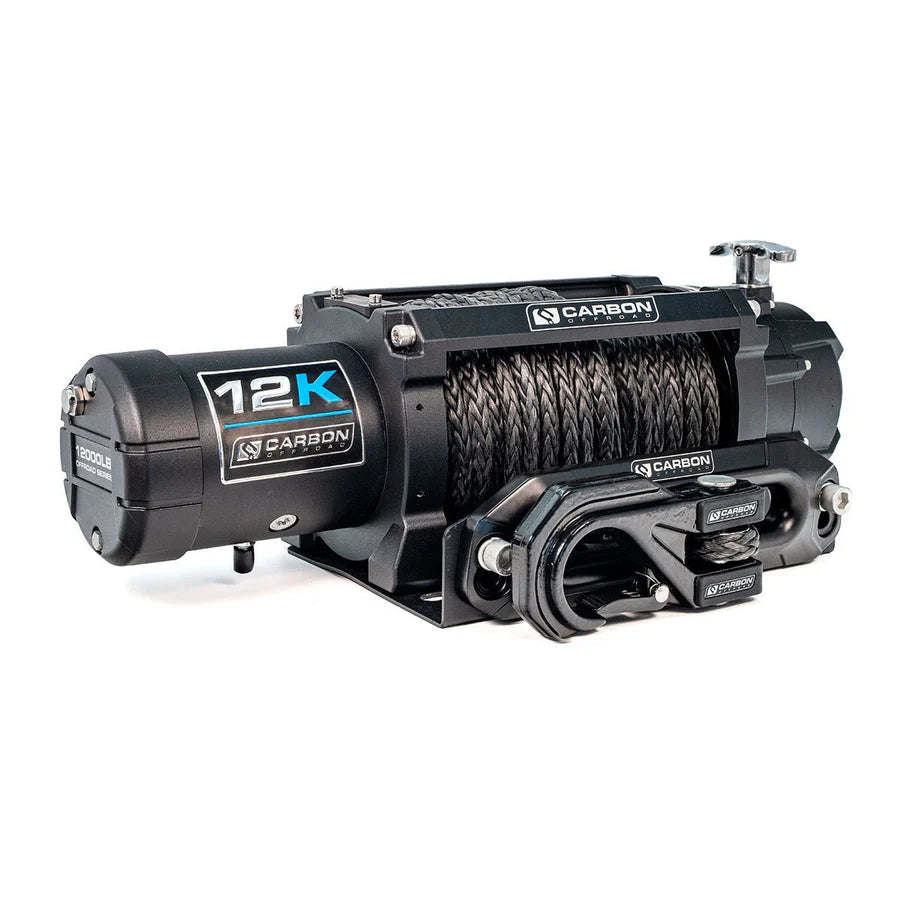

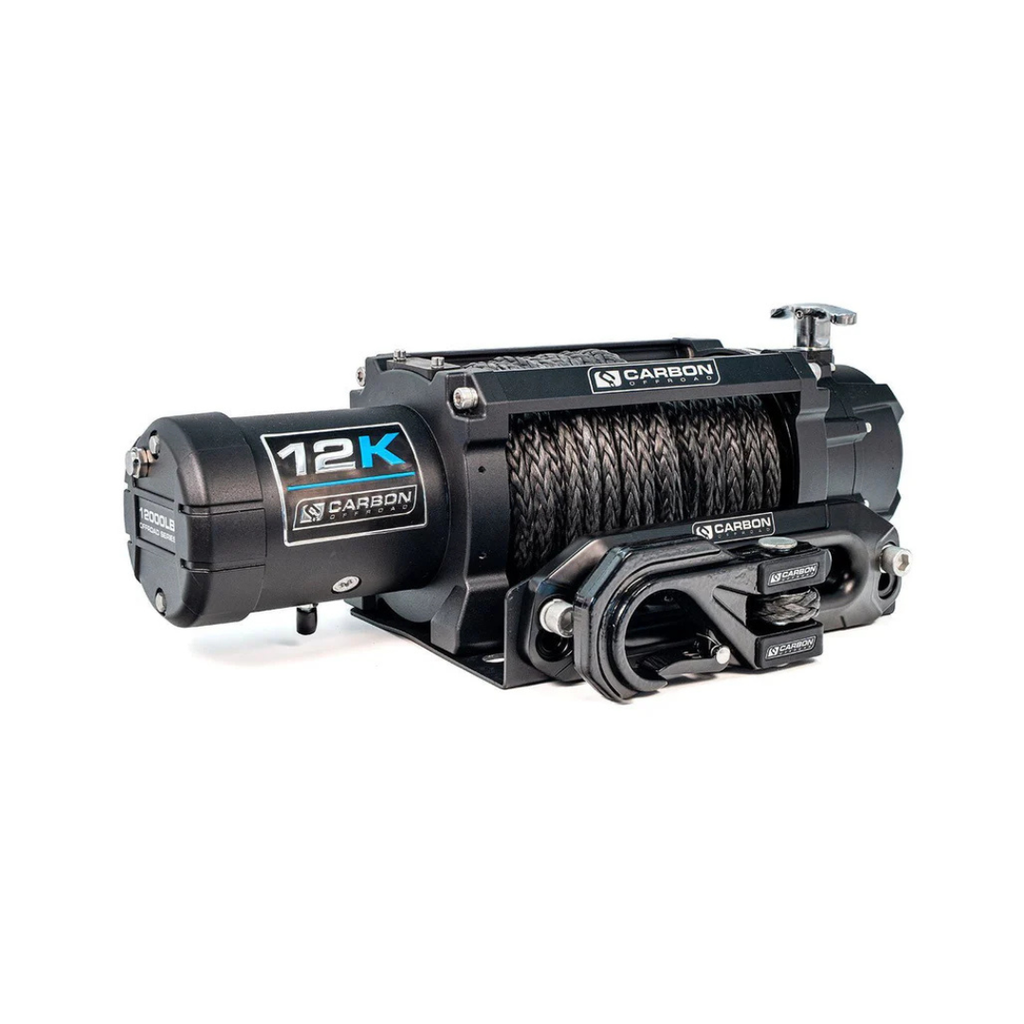

Carbon Winch 12K V3X – Lightweight 45.63lb, 12,000 lb electric 4x4 winch with IP68 waterproofing, wireless/wired remotes, isolator switch, CNC alloy fairlead, and robust hook. Backed by a 5-year electrical/water ingress warranty and lifetime geartrain coverage—built tough for Australian off-road conditions.
Features
- Part number: CW-12KV3X
- Rated line pull: 12000 lbs (5450 kg) single-line
- Motor: 12V DC 6HP series wound motor (24V option available)
- Remote Control: Remote Switch, 12ft (3.7m) lead.
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary.
- Gear Ratio: 218:1
- Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in the motor housing end plate.
- Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
- Limited Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 78.7ft x 3/8" diameter (24m x 10mm)
- Drum Diameter/Length: 2.5" x 8.8" (63mm x 224mm)
- Mounting Bolt Pattern: 10" x 4.5" (254mm x 114.3mm)
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 21.2" x 6.2" x 7.4" (538 x 158 x 187mm)
- Packing Dimensions (L x W x H): 22.8" x 7.9" x 8.7" (580 x 200 x 220mm)
- Winch weight with synthetic rope attached: 43.4lb (19.7kg)
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 58.8lb (26.65kg)
Contents
1 x Carbon Offroad Scout Pro XD10 12,000 lb Winch
1 x Synthetic winch rope (10 mm x 24 m)
1 x Winch rope thimble
1 x CNC aluminium fairlead
1 x Carbon Offroad MegaPro winch hook
1 x Winch mounting bolt kit (mounting bolts, nuts, washers, fairlead bolts)
1 x Wired remote control
1 x Wireless remote control
1 x Isolator switch
