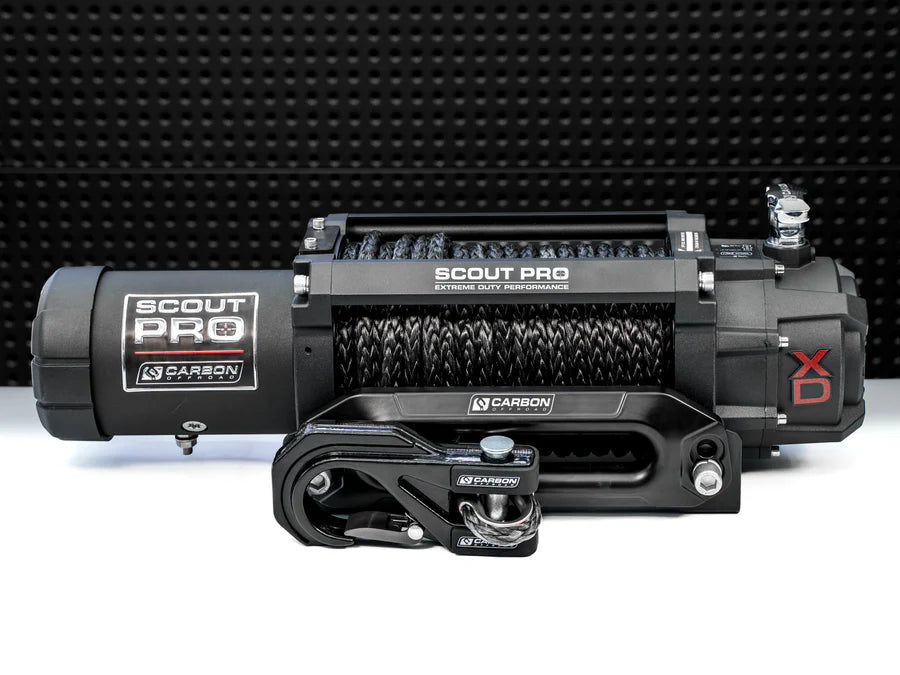

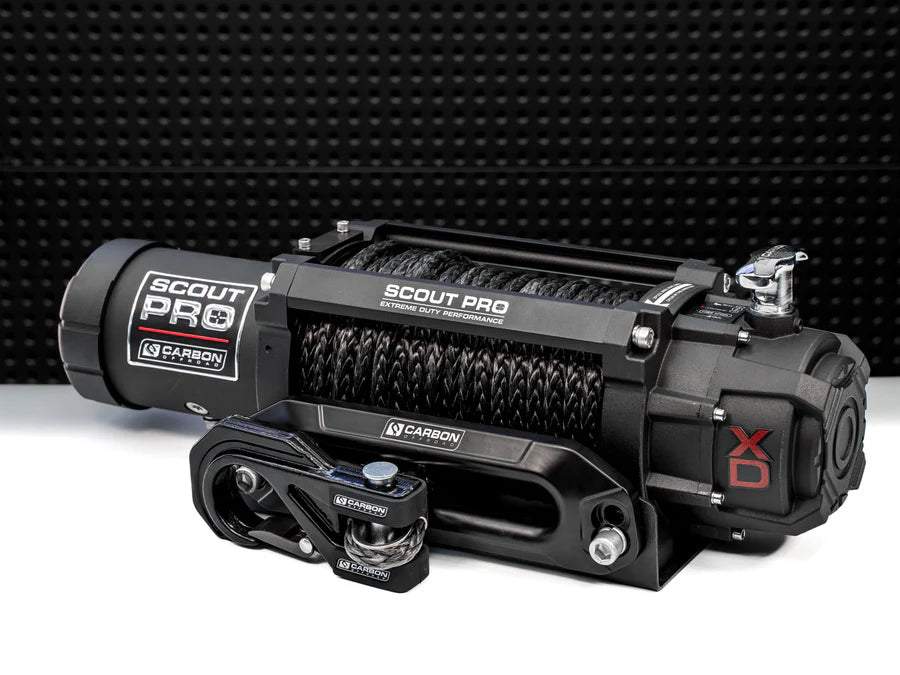

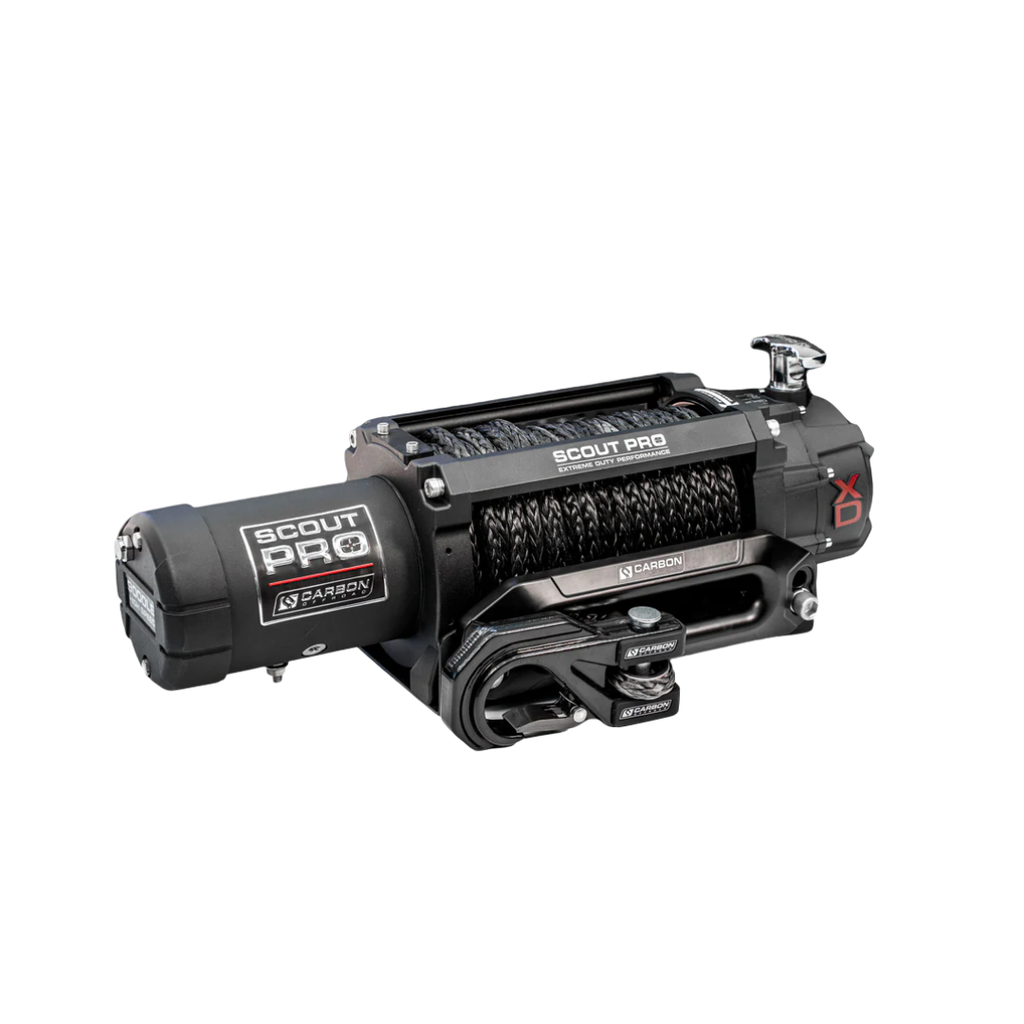

Carbon XD10 Winch – A compact, 10,000 lb-rated winch designed for frequent, heavy-duty offroad use. Features oversized gearsets for strength, premium accessories like the Mega-Pro Rope Thimble and Fairlead, and a rugged build to keep your vehicle within spec and your warranty intact.
Features
- Part number: CW-XD10
- Rated line pull: 10000 lbs, (4536kg) single-line
- Motor: 12V DC 6 HP series wound motor (24V option available)
- Remote Control: Wired with 3.7m lead
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 180:1
- Rotating Ring Gear
- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty

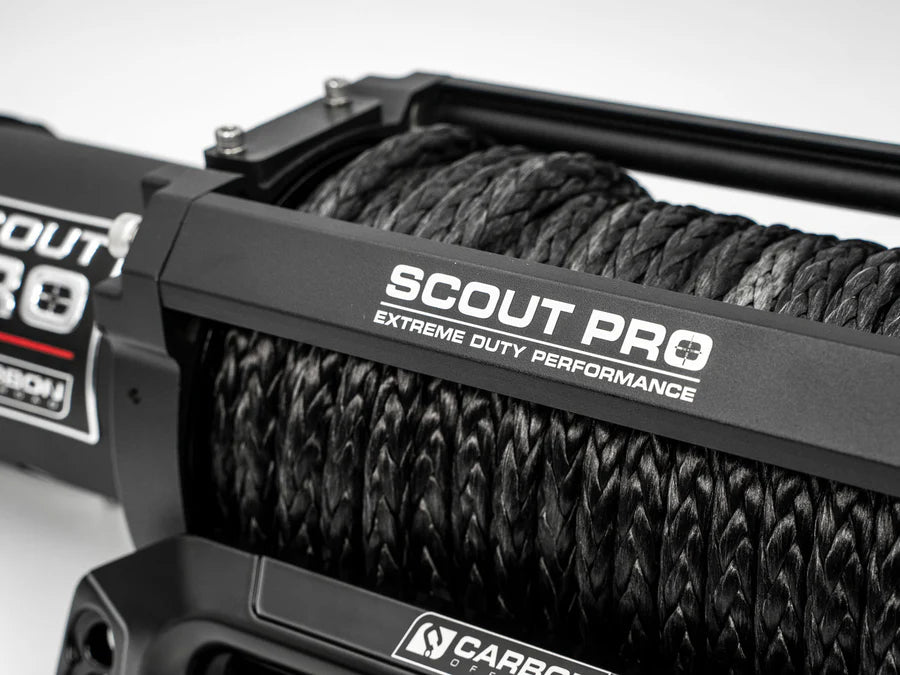

- Synthetic Rope: 24m x 10mm diameter
- Drum Diameter/Length: 63mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")
- Packing Dimensions (L x W x H): 580 x 200 x 220mm
- Winch weight with synthetic rope attached: 19.0kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7kg

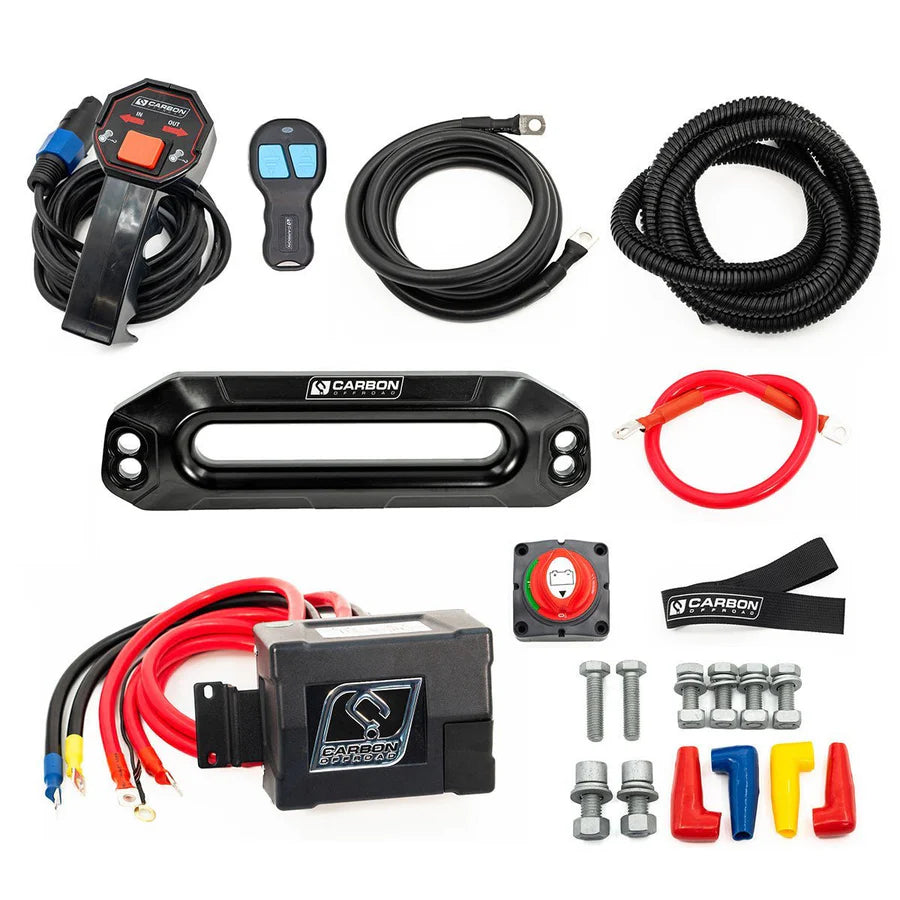

Contents
1 x Carbon Offroad Scout Pro XD10 10,000 lb Winch
1 x Synthetic winch rope (10 mm x 24 m)
1 x Winch rope thimble
1 x CNC aluminium fairlead
1 x Carbon Offroad MegaPro winch hook
1 x Winch mounting bolt kit (mounting bolts, nuts, washers, fairlead bolts)
1 x Wired remote control
1 x Wireless remote control
1 x Isolator switch
