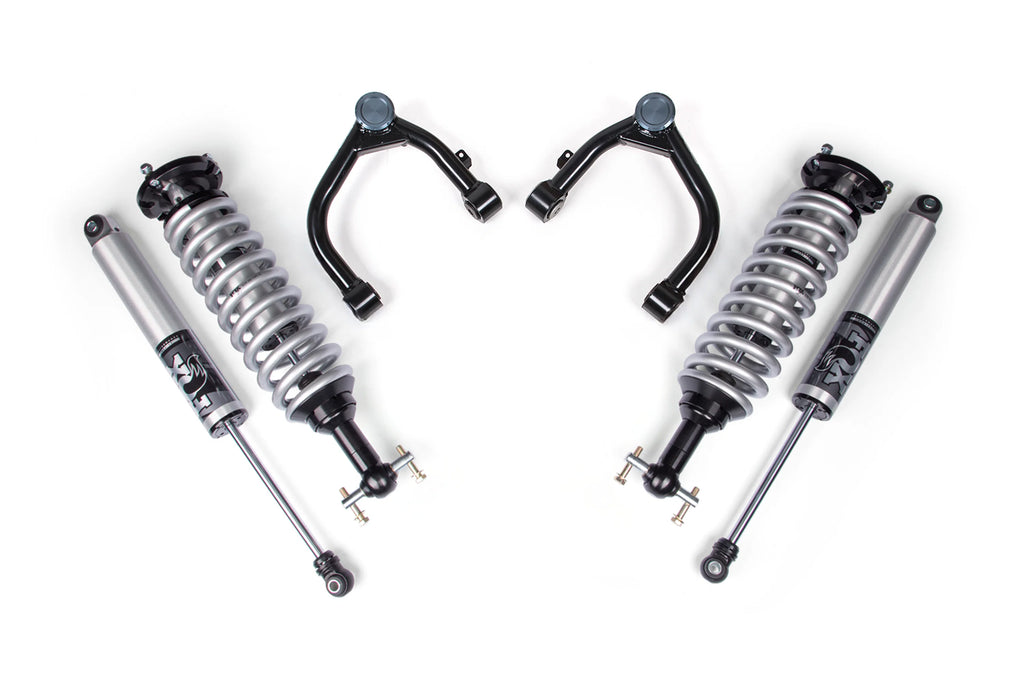

The BDS 2" Leveling Kit for 2019–2026 GM 1500 trucks delivers a premium blend of improved stance, enhanced ride quality, and off-road capability. This system features heavy-duty BDS tubular upper control arms equipped with high-strength ball joints that are significantly stronger than OEM, reducing the risk of unwanted failures and ensuring long-term durability. The arms also optimize ball joint angles and increase suspension travel for reliable performance in demanding conditions. Up front, FOX 2.5 Performance Series coil-overs provide vehicle-specific tuning, exceptional cooling, and precise ride-height control to achieve a true 2" level while contributing to the kit’s superior ride comfort. Complementing the front, FOX 2.5 Performance Series rear shocks deliver balanced handling, fade-resistant performance, and enhanced stability on and off the road. The result is a durable, high-performance leveling solution that maintains factory-like drivability while offering a stronger, more aggressive stance and noticeably improved all-terrain ride quality.
Features & Benefits
- BDS upper control arms which feature improved range of motion as well as increased strength over the OEM components.
- Choice of FOX 2.0 Snap Ring coilover, FOX 2.0 Performance Series coilover or FOX 2.5 Performance Series HTO coil over and shock absorber which improves ride, handling and towing versus the OEM suspension.
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series IFP rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
Recommended Tires & Wheels
(Trimming may be required)
- 295 / 70 with 17 x 9 and 5.5 in. Backspace
- 295 / 70 with 18 x 9 and 5.5 in. Backspace
- 295 / 70 with 20 x 9 and 5.5 in. Backspace
Shock Option
FOX 2.0 Snap Ring
- 2-inch Impact extruded aluminum body
- 3 pre-load settings to adjust ride height
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Series HTO
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
